Liberate Your Energy: A Deep Dive into Portable Power Stations

Liberate Your Energy: A Deep Dive into Portable Power Stations - Mokin

What is a Portable Power Station?

Portable power stations are integrated backup energy systems that store electrical power in an internal battery for later use and backup needs. They utilize a rechargeable battery to generate off-grid electricity. Portability, capacity, lifespan are significant for a specific portable power station model. They possess a larger capacity, higher output power, and wall outlets than power banks. They are powerful enough to charge household appliances. And mobile power stations are suitable for outdoor adventures, while larger models can work as backup power sources during power outages or emergencies.



As a unit that generate electricity using an internal battery and an inverter that converts DC power to AC power, a typical portable power station consists of several key components:



‚Ė∂ Large capacity battery:¬†

  • The battery is the heart of apower station, providing the energy storage. Portable power stations typically use lithium-ion batteries, which are relatively¬†lightweight and have a high energy density, while LFP (LiFePO4) batteries¬†own¬†a longer lifespan and higher efficiency.¬†Battery management systems monitor the health of the battery and prevent conditions like over-current, over-voltage, overcharging, and overheating.¬†It is a system that enables the battery to last longer and protect the attached equipment.



‚Ė∂ Built-in power inverter:¬†

  • An inverter is an electrical device which convertsDC power from¬†batteries¬†into standard¬†AC power that can be used to power common¬†appliances and other electronic devices. In short, an inverter converts direct current into alternating current.¬†Inverters come in different sizes and capacities, ranging from a few hundred watts to several kilo¬†



‚Ė∂ Charge controller:

  • As part of a solar power system, the charge controller regulates the charging of the battery from an external power source, such as a solar panel or AC outlet. It ensures that the battery is charged safely and efficiently.A solar charge controller is necessary for most residential PV panel installations.



‚Ė∂ Various AC and DC ports (including a solar panel input):¬†

  • Portable power stations typically have a DC input port that can be used to charge the battery.The AC output ports are used to power household appliances and other electronic devices that require AC power. Most portable power stations have multiple AC outlets.¬†The DC output ports are used to power devices that require DC power, such as USB devices, 12V car appliances, or other DC-powered electronics.¬†¬†



‚Ė∂ LED display¬†screen:¬†

  • A displayscreen¬†shows the remaining battery capacity, input¬†power, output power, and other important information.¬†



‚Ė∂ Cooling system:¬†

  • Portable power stations generate heat as they work, so they usually use a fan to prevent overheating.¬†¬†



In recent years, portable power stations have gained popularity. Portable power stations are highly applicable in numerous scenarios where portable DC or AC power is needed. They are commonly used as backup power for emergencies and outdoor activities such as camping, fishing, hiking, RV Travel, road trips, and woods escapades, etc.



How it differs from a traditional generator?



A portable power station is different from a traditional generator in many aspects. The following are the main differences:



‚Ė∂ Fuel source:¬†

  • Traditional generators typically run on gasoline, diesel, or propane, while portable power stations use rechargeable batteries. This means that generators require a constant supply of fuel, while portable power stations can be recharged throughsolar panels, AC outlets, or car chargers.¬†



‚Ė∂ Noise level:¬†

  • Generators are known for their high noise levels, which can be disruptive and annoying. Portable power stations, on the other hand, are quite silent and do not produce any noise, making them more suitable for use in quiet environments.



‚Ė∂ Portability:

  • Portable power stations are designed to be lightweight and easy to carry, making them highly portable and suitable for outdoor activities such as camping, hikingand so on. Traditional generators, on the other hand, are typically large and heavy, making them more suitable for stationary use.¬†



‚Ė∂ Emissions:

  • Traditional generators produce emissions such as carbon monoxide and other pollutants, which areharmful to the environment and human health. Portable power stations¬†produce no emissions, making them a cleaner and more eco-friendly option.¬†¬†



‚Ė∂ Power output:¬†

  • Traditional generators typically have a much higher power output than portable power stations, making them better suited for powering large appliances and equipment. Portable power stations, on the other hand, areperfect¬†for powering smaller devices and appliances.¬†



A generator is a device which actually will convert energy to usable electricity in whatever circuitry you have it connected to. Examples of this would be gas generators -- commonly used as power sources for remote areas or as whole home backups. Electric generators convert some type of mechanical action to electricity and solar generators can use solar panels to power devices or homes, often using a battery to temporarily store the electricity. A portable power station is essentially a big rechargeable battery that you carry around. Overall, portable power stations offer a more eco-friendly, quiet, and portable alternative to traditional generators, although they may not be suitable for all power needs due to their lower power output.



Advantages of Portable Power Stations

Portable power stations, also known as portable power supply, have several advantages.



‚Ė∂ Portability:¬†

  • Portable power generators are designed to be lightweightand compact. They are usually¬†come with foldable¬†handles or wheels, enabling users to move¬†them simpl The¬†portability makes them ideal for outdoor activities, such as camping, road trips, and others.¬†



‚Ė∂ Versatilityand convenience:¬†

  • Portable power stations are versatile power sources that can be used to charge and operate a wide range of devices and appliances. They typically feature multiple AC outlets, USB ports, DC ports, and car cigarette lightersockets, allowing you to power¬†smartphones, laptops, cameras, lights, fans, and more¬†small appliances.¬†



‚Ė∂¬†Off-grid powersupply:¬†

  • .Portable power stations provide a reliable source of power when you are off the grid or in areas without access to electricity. They are commonly equipped with batteries that can store enough energywhich¬†can be used later to power your devices.¬†



‚Ė∂ Environmentally friendly:¬†

  • Many portable power stations work withsolar panels, providing a charging option for us. The feature helps to lower carbon emissions. It is possible to contribute to more sustainable energy solutions through adopting portable power stations.¬†



‚Ė∂ Quiet operation:¬†

  • Unlike traditional generators, portable power stations are typically utilize clean energy sources like solar power. As a result, they operate silently without the noise and vibration. They also don't produce odors, making them suitable for indoor use, such as in RVs or tents.



‚Ė∂ User-friendlyinterface:¬†

  • With intuitive interfaces, portable power stations are user-friendlyand easy to operate.¬†They often feature LCD screens¬†that display battery status, power levels, and charging modes. This allows users to monitor and control their power usage efficiently.¬†



‚Ė∂ Emergency backup:¬†

  • Portable power stations provide backup power during power outages caused by natural disasters, such as hurricanes or earthquakes. With a portable power station, you can keep essentials charged, power medical equipment, run lights, and even operate some small appliances, ensuring safety during emergencies.



‚Ė∂ Lowermaintenance:

  • Compared to traditional generators, portable power stations have lower maintenance requirements. They don't require fuel, oil changes, or regular engine maintenance. Instead, you need to ensure proper battery maintenance and occasionally clean the solar panels. This reduces the costsassociated with maintaining a generator.¬†



‚Ė∂ Peace of mind:¬†

  • Having a portable power station, users can live without the fear of unexpected power outages and natural disasters, as they provide reliable backup power.



Capacity and Output Power

Watt Hour is the number of watts that a battery can supply every hour. For instance, if you have an appliance that says 100W, then it means the unit requires at least 100 watt-hours in one hour to work properly. For such a device, you would need a 100Wh battery. How to calculate the working hours of WH? The WH battery capacity: Discharge Current x Average Discharge Voltage x Time = 1kWh = 1000WH.



The following are the amount of watt power specific devices need to charge. Outdoor digital devices like cameras, tablets, mobile phones, notebooks, and photography tools require 300-500W power. A 300-500wh portable power station can meet these demands. Outdoor activities like preparing meals on an electric stove, boiling water, night lightning for RV, mobile phone usage require 500-1000W power. A 500-1000wh portable power station can meet these demands. Home appliances like lights and fans can consume up to 300W-1000W power. A 300-1000Wh portable power station can meet that demand. However, it also depends on your specific needs. For on-site working, simple construction operation requires at least 1000w power. A 1000Wh portable power station can meet the demands.



Multiple Charging Ways

We appreciate the different charging options of portable power stations. Let's explore the three ways you can recharge your portable power station.



‚Ė∂¬†¬†Wall outlet:¬†

  • Charging your portable power station through a wall outlet is the primary method. Portable power stations are equipped with an input wall outlet port connected to the charger. A high-quality power station can be fully recharged from a wall outlet in 1 - 4 hours.¬†

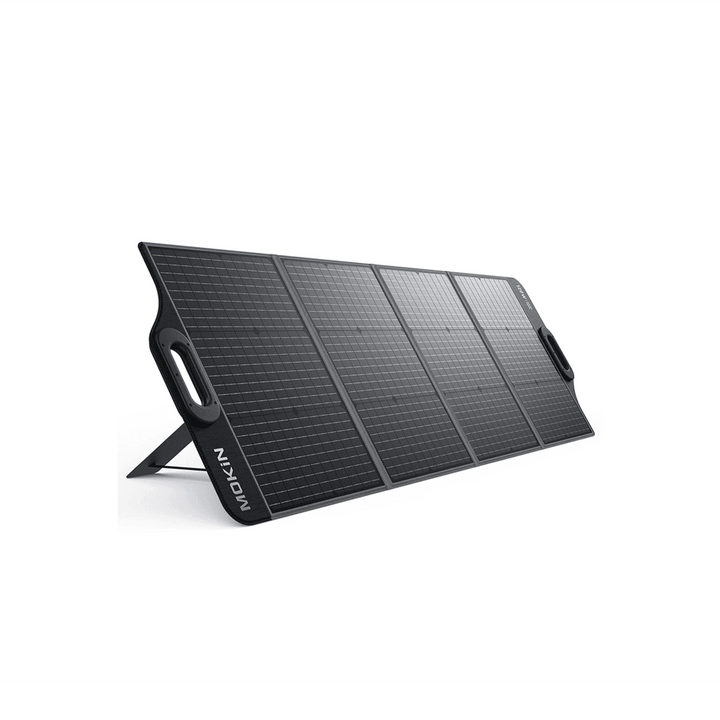

‚Ė∂ Solar panels:¬†

  • Solar charging is regarded as the most economical way. To charge your portable power station using solar energy, all you require is a solar panel sheet. Solar panels are available in various sizes. Typically, it takes 4 - 12 hours to fully charge a portable power station with solar panels.¬†



‚Ė∂ Car outlet:¬†

  • This charging option proves helpful for individuals who tend to forget. In case you forget to charge your power station in advance, you can easily connect it to your car's cigarette outlet and start the charging process.¬†



Safety and Maintenance

When it comes to portable power stations, safety is a significant aspect to consider. While these devices can be highly useful, they also carry risks. It is crucial to acknowledge the associated safety concerns and take appropriate measures. Choose the correct charger to avoid overcharging and pay attention to the compatibility of devices and appliances. Adherence to operating procedures ensures the safe and efficient use of portable power stations.



‚Ė∂ Battery safety:¬†

  • Portable power stations usually adopt lithium-ion batteries, which ¬†may volatilize if they are damaged or improperly used. If the battery is damaged, stop using it immediately. Additionally, it is important to recognize the signs of a battery damage such as swelling, leakage, or odors, and learn to deal with them accordingly.¬†



‚Ė∂¬†Charging safety:¬†

  • Use the appropriate charger and adhere to the manufacturer's instructions to prevent damage and potential hazards. For portable power stations with built-in solar panels, it is vital to ensure that the panels receive direct sunlight. Regular cleaning and maintenance of the solar panels is essential to prevent overheating or damage. What‚Äôs more, attach importance to the charging duration, as overcharging can lead to battery damage.¬†



‚Ė∂ Usage safety:¬†

  • Be aware of the compatible devices that can be powered by the portable power station. Avoid damage to appliances and ensure the safe utilization of the power station.¬†



Regular maintenance of portable power station is necessary. While most portable power stations offer multiple outlets, please note that not all outlets may be compatible with your appliances. To ensure proper usage, refer to the device's instructions before use. Maintain regular charging of your devices. Be careful with liquids, as portable power stations will be damaged when exposed to water or other liquids. When traveling, put your portable power station in a secure location to prevent damage. Additionally, always remember to pack the correct cables and adapters for your specific needs.



Applications

Portable power stations have become increasingly popular due to their versatility and convenience. They provide reliable off-grid power in various scenarios:



‚Ė∂ Camping:¬†

  • They can supply energy for all the necessary appliances in your tent.¬†A PPS for camping allows you to generate energy for night lamps, electronics, coffee makers, and other essentials simultaneously.



‚Ė∂ RV:

  • RVs spend a lot of time on the road, and a PPS reduces the drain on your vehicle‚Äôs gasoline.With a PPS and solar panel setup, you don‚Äôt need to worry about fuel efficiency and costs of powering your RV appliances and devices.



‚Ė∂ Outdoor activities:¬†

  • Portable power stations are ideal for outdoor activities. They provide a reliable power source for charging electronic devices, running lights, and even powering small appliances such as mini fridges.¬†



‚Ė∂ Emergency backup:¬†

  • Portable power stations are excellent power sources during power outages or natural disasters. They can power essential devices such as phones, radios, and medical equipment, ensuring that you stay connected and safe.¬†



‚Ė∂ Off-grid living:

  • Portable power stations are also becoming popular among individuals and families who choose to live off-grid. They provide a reliable source of power for essential devices and appliances, enabling a comfortable experience.¬†

Environmental Benefits and Energy Efficiency

Portable power stations offer environmental benefits by reducing greenhouse gas emissions. Many portable power stations can be charged by solar panels, providing a clean and renewable source of energy.



Designed to convert stored energy, minimizing energy loss during the process. Many portable power stations feature intelligent power management systems that regulate the energy output. Instead of consuming fuel continuously, they provide power on demand. They only consume energy when actively powering devices, reducing energy waste. Portable power stations can be charged using renewable energy sources like solar panels. By harnessing clean and sustainable energy, they contribute to reducing reliance on fossil fuels and minimize carbon emissions. Portable power stations offer a convenient and energy-saving solution.



Troubleshooting Tips for Dealing with Issues

No power output:

A blown fuse, a damaged power cable, or a faulty battery may  result in no power output. Check the fuse and cable, replace them if necessary. If the problem remains unresolved, change the battery.



Overheating:

Overheating is a common issue when using portable power supplies in extreme weather. Avoid using the power station in direct sunlight or high temperatures, and take short breaks to keep it cool.



Battery won't charge:

If the battery will not charge,the charging cable or port may be faulty. Check the cable for proper connections. If the problem remains unsolved, replace the battery.



Conclusion

Portable power stations are versatile devices that offer numerous benefits for users. They are cost-effective, noiseless, carbon-free, portable, durable, and easy to run. The above advantages make them valuable tools for ensuring power availability in various settings.



Opting for a solar generator is a wise investment as it offers a reliable source of electricity, storing the energy of sunlight for charging. Once purchased, there are no additional expenses involved. There is no need to refuel, which saves money in the long run.

 PS:

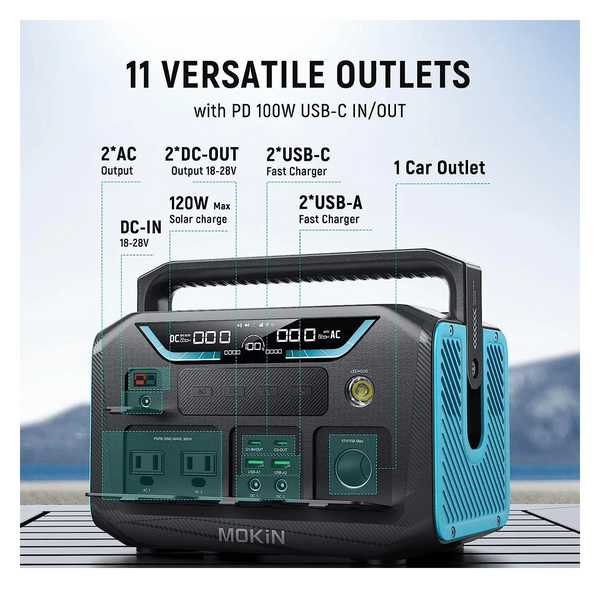

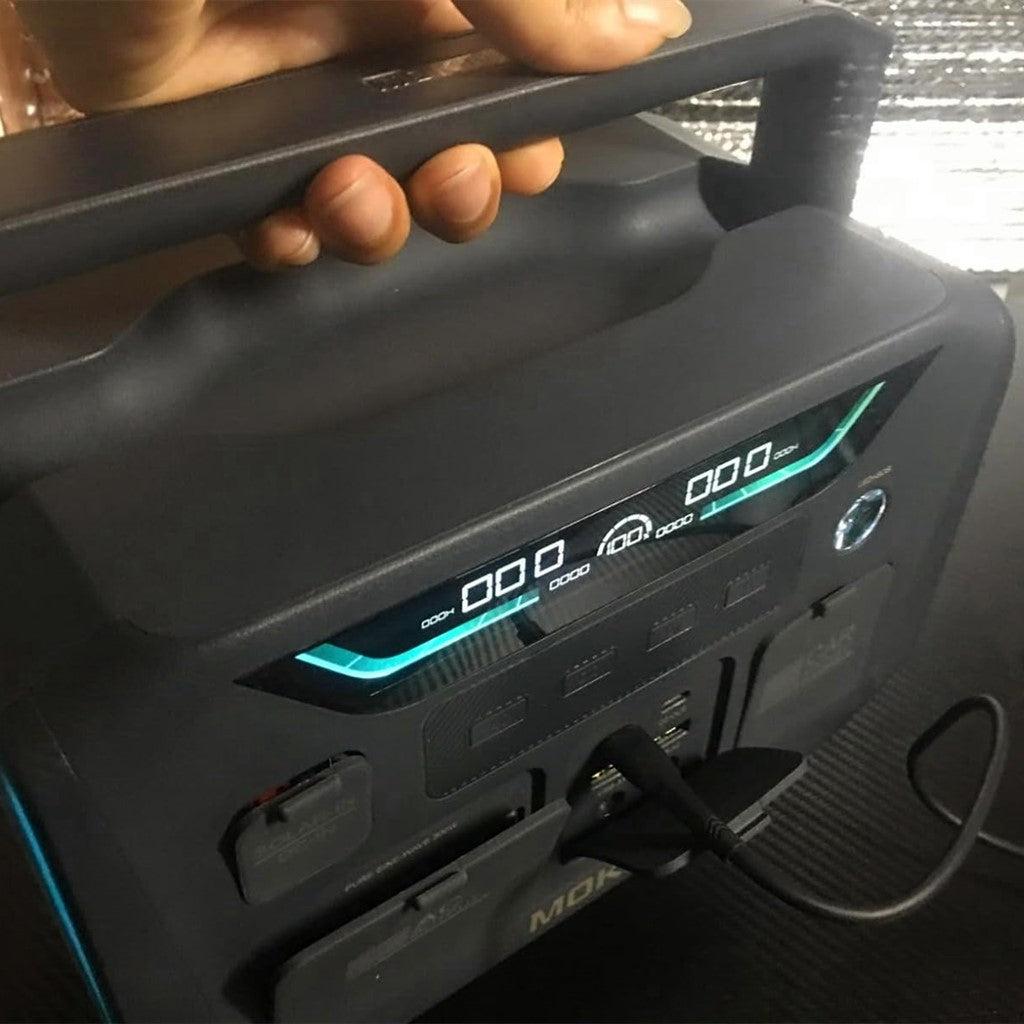

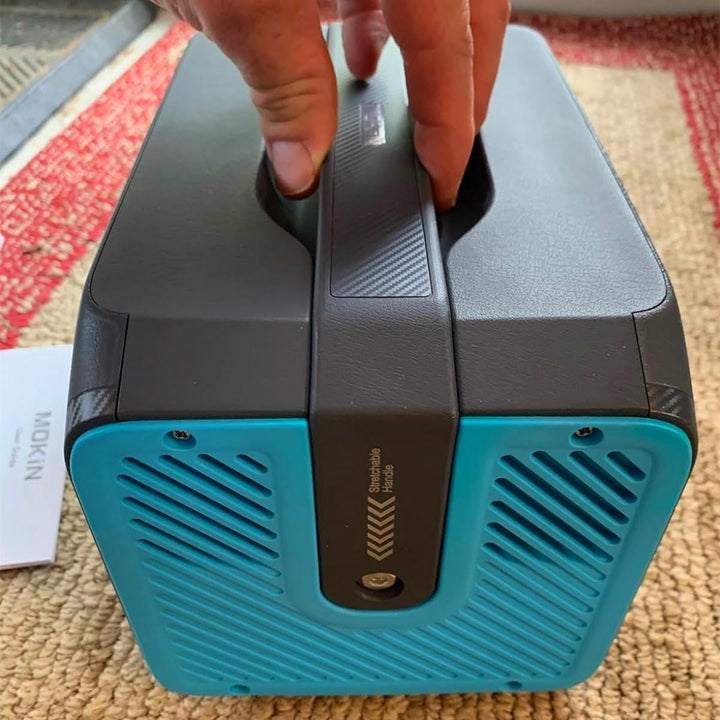

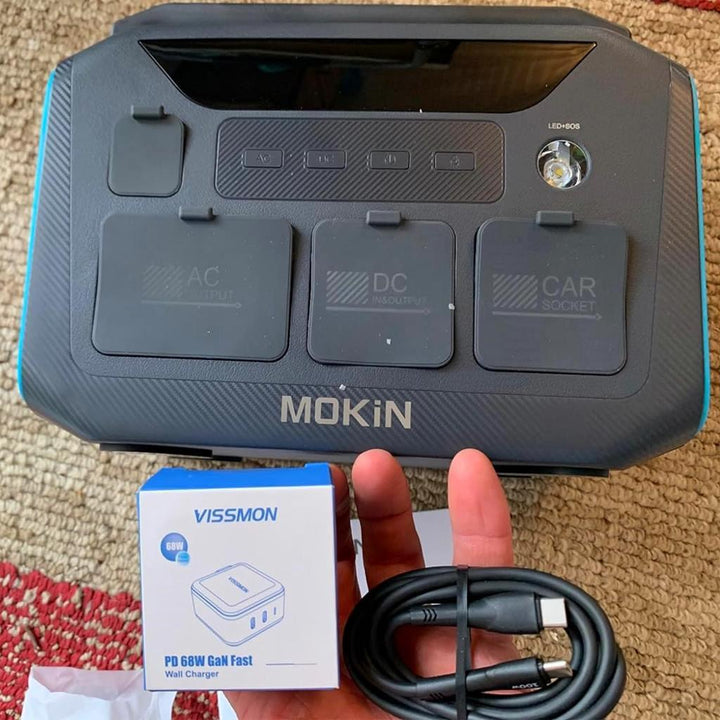

MOKIN Portable Power Station | 300W 288Wh

MOKIN Portable Power Station | 300W 288Wh
‚Äʬ†MOKIN Smart 300W/288Wh 9-port power station.

‚Äʬ†USB-C PD 100W passthrough quick charge and recharge port(IN/OUT).
‚Äʬ†Built-in BMS&MPPT ensures multi-protection for the power station.
‚Äʬ†The integrated MPPT controller enables the solar generator set to operate at its max power point.
‚ÄĘ USB ports can charge up to 6 devices simultaneously.
‚Äʬ†Universal Compatibility -¬†compatible with a wide range of devices, including drones, cameras, and MacBooks.

Solar-powered generators like the MOKiN MO-PH003 300W fulfills the following requirements. Its innovative design enables charging in any location with sunlight, allowing us to choose our preferred destination. With this reliable backup solution, we can live without the fear of unexpected outages.
