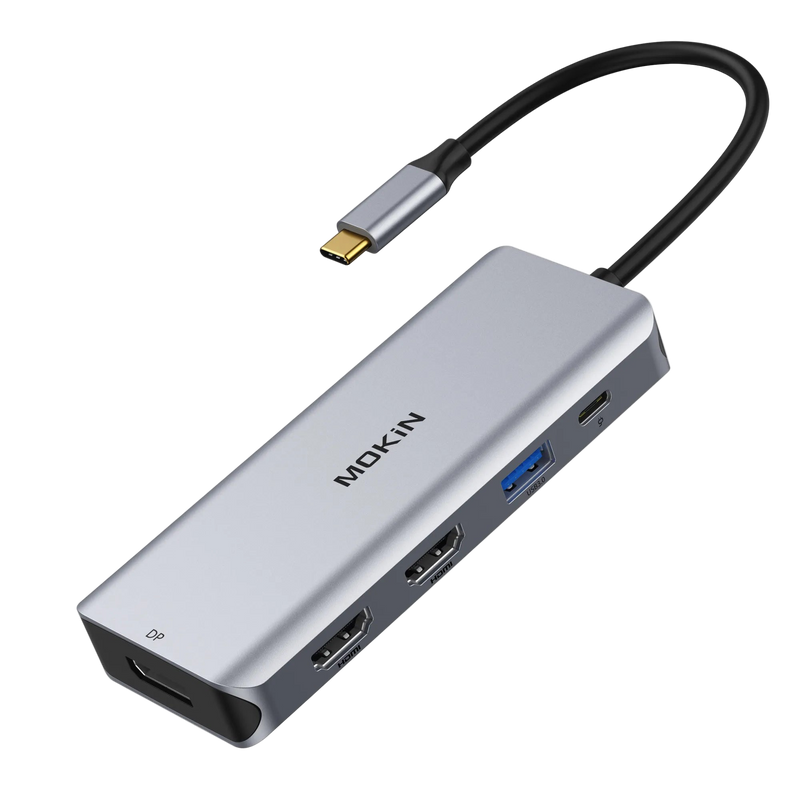

Mokin 9 IN 1 USB C Docking Station With Triple Display

MOKiN 9 IN 1 USB C Docking Station With Triple Display

$39.99 USD

SKU: MOUC0304

Three high-definition video output ports: HDMI+HDMI+DP(Only the Windows system supports the Triple display);
Transfer and backup your files at speeds up to 5Gbps;
Built in SD and TF slots for easy access to files from universal SD and Micro SD Memory Card;
Support 100W power in & Power out (charging) is limited to 87W for safety.

PAY WITH EASE

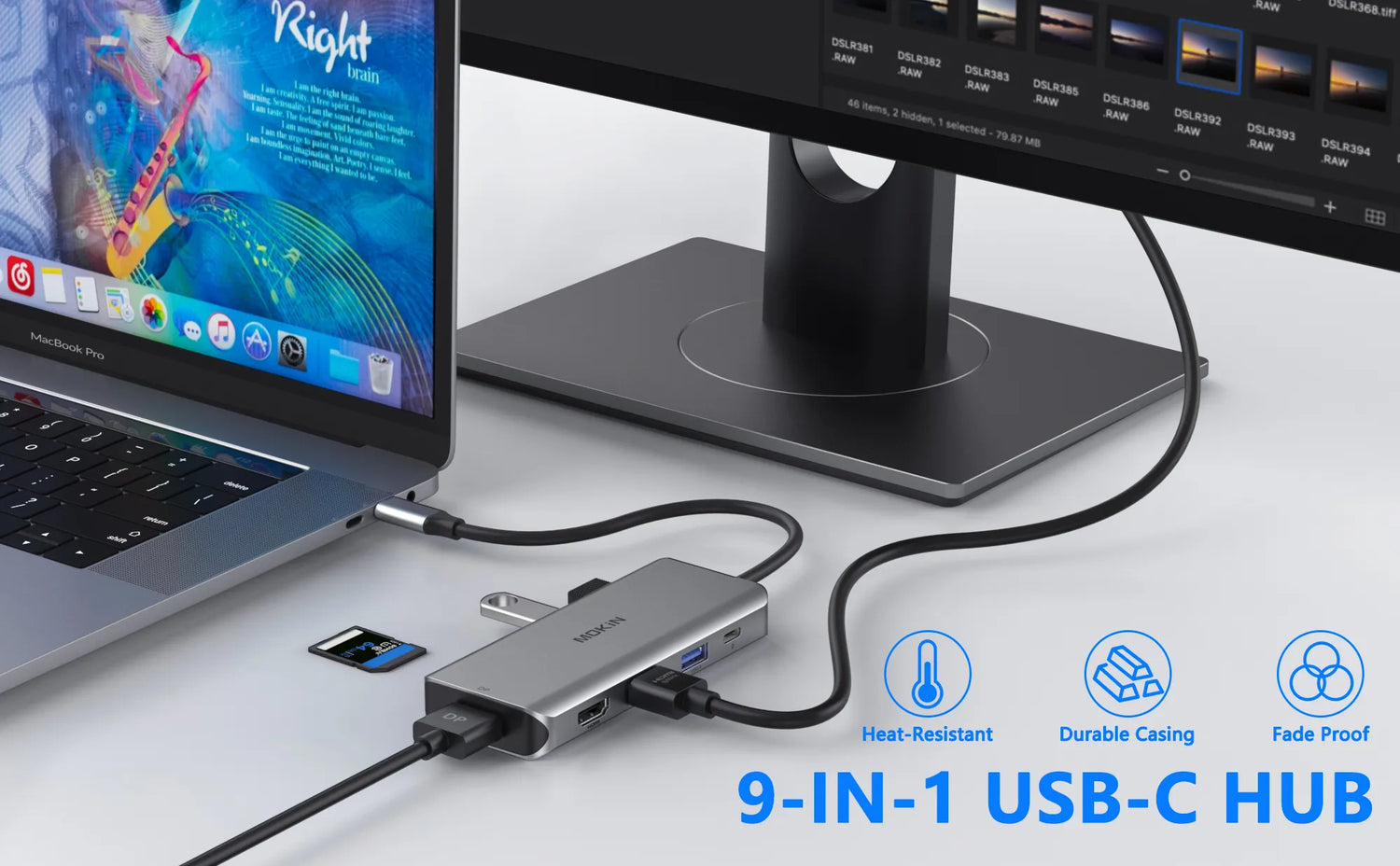

9 In 1 USB-C Hub: All Expansion From A Single USB-C Port, you will get 2 HDMI output,1 DP output,4K@60HZ resolution and vivid video,1 Type C PD 3.0 charging port provides 100W super-fast charging speed, 1 USB 3.0 ports (5Gbps) and 2 USB 2.0 (480Mbps) ports help you transfer the data and connect with the wireless devices; SD & TF card reader makes you get way more.

4K@60HZ UHD Visual Feast & Triple Display: This USB-C Docking Station With three high-definition video output ports: HDMI+HDMI+DP, but only the Windows system supports the Triple display, Mac OS is not supported.Under Extended Mode, you can totally enjoy 4 multiple display from 2 HDMI output, one DP output and one screen of laptop. For Collage Mode, our hub support triple display: one of HDMI output, one of HDMI+DP and one of laptop. But only Windows system support MST, Mac does not support.

Reliable Data Syncing USB Port Design: Transfer and backup your files at speeds up to 5Gbps via the Type-C port and 1 USB 3.0 ports; 2 USB 2.0 Ports help to a better connection with the wireless mouse and keyboard. Built in SD and TF slots for easy access to files from universal SD and Micro SD Memory Card, support 2 cards reading simultaneously.

Fast Charging: MOKiN multiport USB C adapter provides one Type-C pass through Female port by which you could securely charge connected MacBook or other Type-C laptops.Support 100W power in; Power out (charging) is limited to 87W for safety.

Widely Compatibility: Plug & Play, The MOKiN USB C 3.1 hub for MacBook Pro 2016/2017/2018/2019, iMac / iMac Pro (21.5 inch, 27 inch), iPad Pro 2018 / 2019, Google Chromebook Pixel, Huawei MateBook, Huawei MateBook Pro, Dell, Surface Book2, HP, Lenovo, and Samsung S9, S9 Plus, S8, S8 Plus, Note 9, Note 8, Huawei New version phones and many other Type C laptops.

MOKiN Triple Display USB Type C HUB for MacBook Pro Air USB C HDMI Adapter

The MOKiN USB C Hub provides a stable connection and increases the productivity of your device by expanding the female USB C port to multiple possibilities of connectivity. you can stream/extend video to your monitor/projector/TV with 2HDMI/DP port from your Laptop/. And you can use supper fast speed usb 3.0 ports(Speed up to 5Gbp/s) to connect your hard drives for your new usb c latops and 2 usb 2.0 prot to connect your keyboard, mouse(Without any lag), PD Fast charging port keeps your device charged at any time,two convinient SD & TF card reader to transfer video /image(up to 104Mb/s).

Extremely compact and slim body, MOKiN USB C Hub would be an ideal for everyday carrying, commuting and travelling.

Important note:

① Triple Display: One display of HDMI1 output, one display of HDMI2+DP, one screen of laptop.(HDMI2&DP will output the same display);
② Triple Display(MST) for Windows: only support the Triple display for Windows.Mac OS DOSE NOT support MST. 3840x2160@30hz output only available when using HDMI or DP display or mirror the three displays.In extend mode, each will be limited to a maximum resolution of 1080P;
③ Mac OS System: For Apple laptop, its not support extend 2 different screens, displays are Mirror mode only which is limited by Mac itself. means that the two external monitors are same. but laptop screen can display different content from them;
④ Not support some usb c devices: To use this product the host USB-C port from your device must support DisplayPort Alt Mode and Power Delivery. For using display function, please confirm the type c port on your laptop supports video output. so please let us know if your devices are not in the compatibility list of user guide;
⑤ 4K HDMI Display: The final resolution of HDMI output depends on your host devices. (Only when your devices support 4K resolution, the video output will be 4K). Use HDMI2.0/DP1.4 or above cables for optimum performance.

Comfirm the USB-C port function before puchasing

Support Triple Display(only Windows)

MOKiN 9 In 1 USB C Hub

The USB C ports are looking the same, but it has several critical differences between Thunderbolt 3, USB-C 3.1 Gen 2, and USB-C 3.1 Gen 1.

Support Dual or Triple Display:

√ Thunderbolt 3: 40Gb/s

√ USB-C 3.1 Gen 2: 10Gb/s

√ USB-C 3.1 Gen 1： (Support Power Delivery)

DOES NOT SUPPORT USB C DISPLAY OUTPUT:

× USB-C 3.1 Gen 1: 5Gb/s (data transfer only)

Note: Please ensure the Laptop has thunderbolt 3 / USB-C 3.1 Gen 2 /USB-C 3.1 Gen 1 (Support Power Delivery) to support multiple-display before purchase.

Dual HDMI port + 1 DP port

1920*1080/60HZ when connecting three monitors at the same time, and you need to turn off your laptop screen.

1.DP: 4Kx2K 60HZ/3840x2160 (work separately if source is DP1.4); 4Kx2K 30HZ/3840x2160 (work separately if source is DP1.2);

2.HDMI 1: 4Kx2K 30HZ/3840x2160;

3.HDMI 2:4Kx2K 60HZ/3840x2160 (DP1.4); 4Kx2K 30HZ/3840x2160 (DP1.2).

Triple Display(Windows)

Please click Intel Graphics Settings for multi-display setting or hotkey: Windows P

Please Note:

You can set Display, Resolution and Refresh Rate on the General Setting.
Resolution can only reach up to 1920*1080/60HZ when connecting three monitors at the same time. It’s not suggested to do so. But if you need to do so, please turn off the laptop screen( Click“Second screen only”) after connecting.

Mirror Mode & Non-mirror Mode(Mac OS)

Setting: About This Mac>Display>Arrangement>Mirror Displays;

Please Note:

For Apple laptop, its not support triple display, displays are Mirror mode only which is limited by Mac itself. 3 external monitors will display the same content but laptop screen can display different content from them.

1 USB 3.0 port +2 USB 2.0 ports

MOKiN 9-1 usb c hub provides you 3 USB ports，and allows you to use them at the same time.
1 USB 3.0 Ports with 5Gbps data transfer rate and 4.5W (5V/900mA) Power output. compatible with USB2.0/USB1.1.
2 USB 2.0 Ports are better for mouse, keyboard or other low rate devices.

SD + Micro SD/TFcard slot

Built-in SD/TF card slots for Type-C devices to access files directly from an SD/TF card, support Memory card capacity up to 512GB.
Super fast read and write speed ,let you get access your files easily.sd card and micro sd can work simultaneouly.

100W Power Delivery

The USB Type-C PD charging port supports a maximum of 100W power (only for charging). charging limitedto 87 for safety, Quickly charge laptops and use other hub functions at the same time.

Compatible Devices: (Not a full list)

Lenovo Yoga 900/ 910, Lenovo X1 Yoga (2nd Gen), 13' Lenovo 720 laptop ,NUC, Lenovo c740-14il, Lenovo Yoga C740, Lenovo legion Y740, Levnovo Yoga 920, Lenovo Ideapad 5, Lenovo ideapad slim 7, 2020 Lenovo IdeaPad 5 15 mit Ryzen 4800u, Lenovo Thinkpad T590, Lenovo Thinkpad T480, Lenovo thinkbook 14s, Think pad L590, Think Pad E15, ThinkPad X1 Carbon;

HP Spectre X2, HP X360, HP Elite×2 1012, HP Elitebook Folio G1, HP ZBook 15 G3, HP elitebook 840 g6; HP Chromebook; HP Notebook 15-dy1036nr; HP ENVY x360 13-ay0000; HP pavilion intel core 13; HP envy x360 model m6-aq105dx; HP Envy 17t (2020);

Dell XPS 15 (9550, 9560) Dell XPS 13 (9350, 9360, 9370, 9380) Dell XPS 12 2-in-1 9250 Dell Precision 5510 Dell Latitude 5290 2 in 1/5285/5480/7280 Dell Latitude E7470 laptop; Dell Precision; Dell Latitude 5590; Dell Latitude 5510;

Acer Spin 7, New Acer Switch Alpha 12, Acer Chromebook R13, Acer Aspire V Nitro 15; Acer model SB230; Acer Chromebook R13;

MacBook Pro 2020/2019/2018/2017/2016; MacBook Air 2020/2019/2018/2017; iPad Pro 2018/2020; Macbook Retina 12" Laptop 2015/2016; iMac, iMac Pro 2019 2018 2017 (won't support dual monitor/triple display monitors);

Microsoft Surfacebook 2, Microsoft surface pro 7; Surface GO 2; Microsoft surface 3;

asus zenbook s13 ux392; asus x571gd;

Google Chromebook Pixel;

Reminder: Mac OS System are mirror mode only. If you have special equipment, any queries, just reach out to us directly

Supported Systems: Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later.

Incompatible devices:

HP14s-be102TX, HP Probook 650 G2, HP Probook 455 G4, HP Pavilion-14 bf116tx, HP 14-ce1004TX 14, HP Elitebook 820 G3, HP Pavilion 15 ck009, HP EliteBook 745 G4, HP Pavilion Power Laptop 15-cb, HP Probook 430 G5, HP EliteBook 828 G4, HP Pavilion 15-cs3000, HP Pavillion Laptop Model 15-cs1014-ng, HP probook g3, HP bs049dx;

Lenovo IdeaPad 3 (17") Intel, Flex 5 14 (AMD), IdeaPad Flex 5 15 (Intel) 2 in 1, ThinkPad 11e Yoga Gen 6 (11”) 2-in-1;

Dell Inspiron 15 3000, Inspiron 11 3000 2-in-1, Inspiron 17 3000;

Samsung Galaxy A20 / A20E / A50 / A70 / A80 / S6 / S7 / J6 / J7 / M20 / M30; Samsung Galaxy Tab A / 10.1 / 10.5 / S3;

MacBook Air 7.2, MacBook Pro 2015, iMac 2021;

LG Google Nexus 5X/6P, LG Stylist/LG G6,LG V30, LG k10/k20;

Oneplus 2/3/3T/5T/6T; All Motorola's phone; GoPro; Amazon Fire Tablet; Surface Dock 2;

Acer Aspire A717-72G,Acer Aspire A515-44-R1DM, Acer Aspire a515-54 model;

Predator Helios 300 PH315-52-754M, Microsoft Surface Pro 6, Huawei MediaPad M5 Lite.
